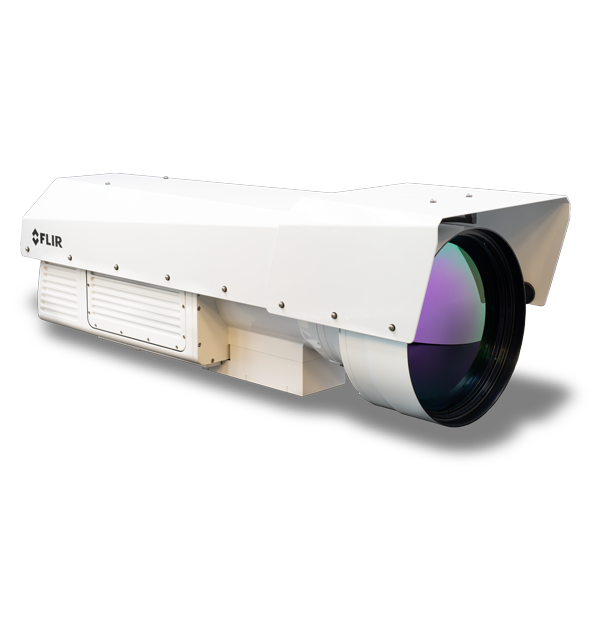

FLIR RS8480 High-Resolution MWIR Science Camera
The FLIR RS8480 is a high-resolution cooled MWIR science camera in the FLIR RS-Series, designed for long-range research, range testing, and quantitative thermal measurement. It combines a 1280 × 1024 detector with 8 µm pixels, a 3.0–5.0 µm spectral range, and continuous zoom optics to provide high spatial definition and calibrated radiometric data at distance.
Advanced triggering and IRIG-B synchronization support integration with range instrumentation, with an optional afocal configuration available for extended optical reach.
Key Technical Features
- 1280 × 1024 MWIR detector with 8 µm pixel pitch
- 3.0–5.0 µm spectral range
- 50–250 mm continuous zoom lens
- Optional 150–750 mm optical configuration
- Calibrated radiometric measurement
- Advanced triggering and IRIG-B synchronization for range instrumentation
Contact Delta Photonics to discuss your long-range thermal imaging application and RS8480 configuration.
