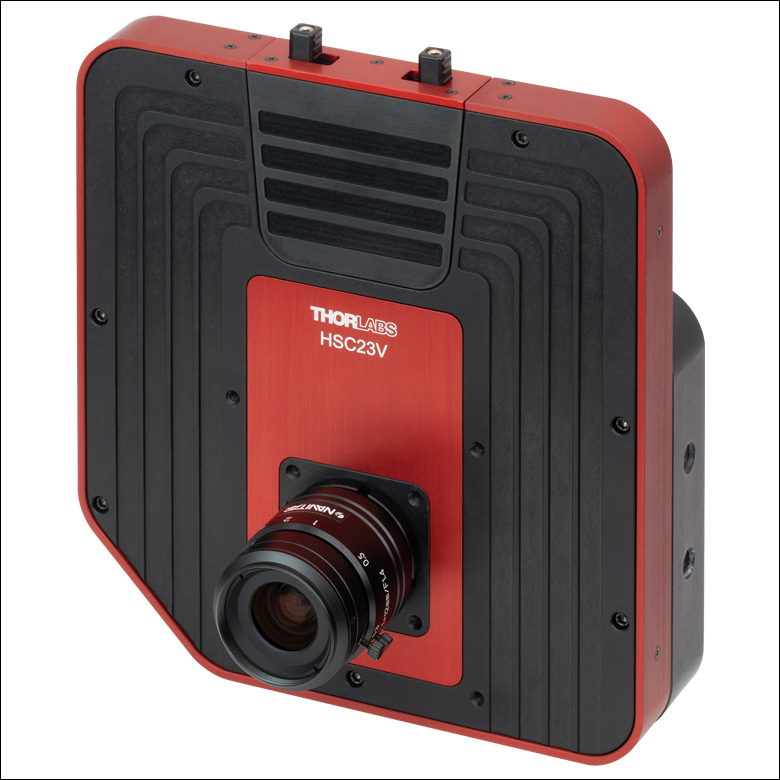

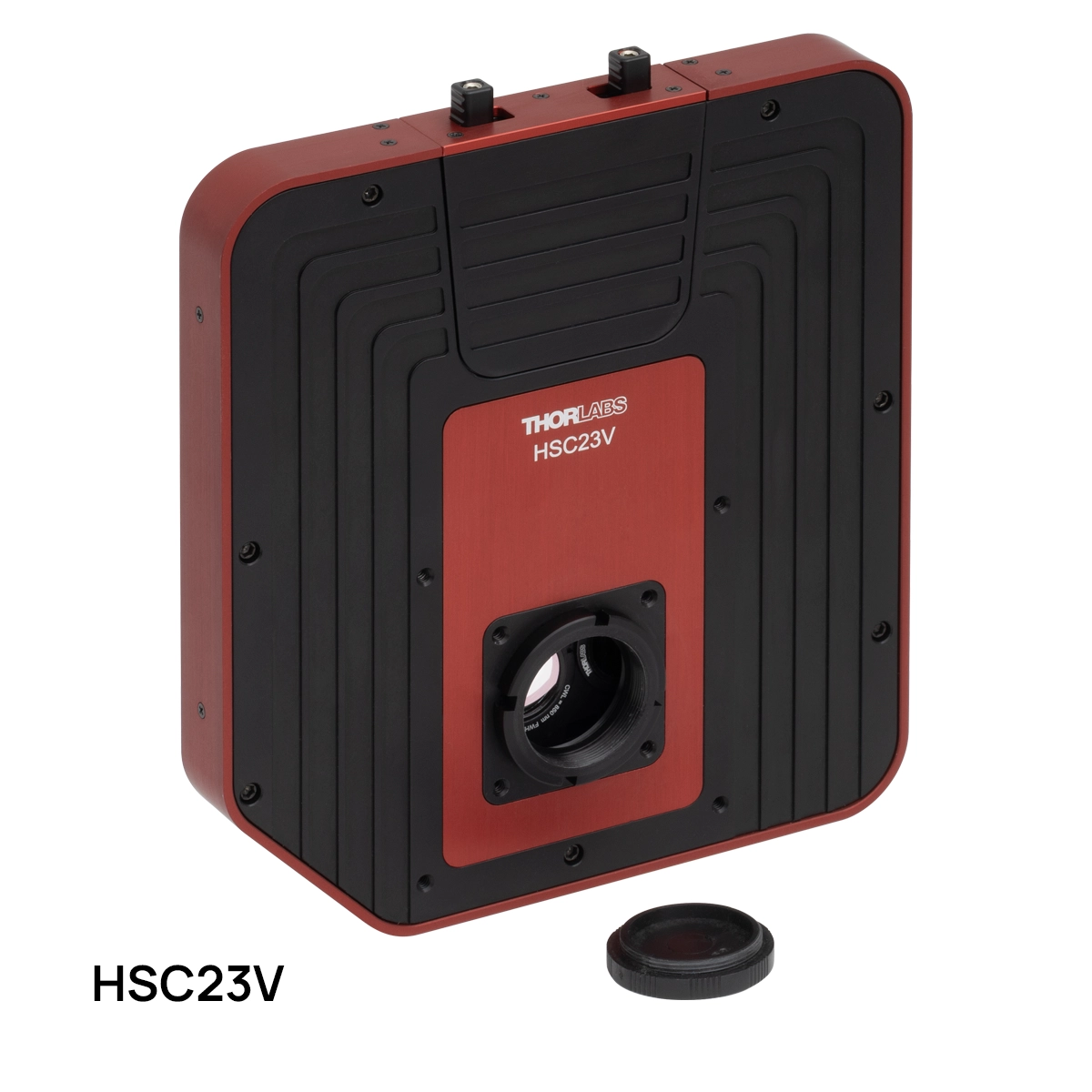

Multispectral Imaging System – HSC23V
The Thorlabs multispectral imaging system is a filter-based platform that captures spatial and spectral information across multiple wavelength bands using a single optical path. It combines a 1/1.2″ format monochrome CMOS sensor (1936 × 1216, 2.3 MP) with high quantum efficiency (up to 71%) and a global shutter architecture, together with a motorized filter wheel and synchronized acquisition software. The system is intended for applications that require repeatable spectral separation and image alignment without moving to hyperspectral complexity.
Key advantages:
- 1/1.2″ monochrome CMOS sensor, 1936 × 1216 (2.3 MP) with up to 71% QE
- Global shutter with USB 3.0 interface and synchronized acquisition
- Compatible with 30 mm and 60 mm cage systems, with 1/4″-20 mounting options
Contact Delta Photonics to discuss your application and get a recommended configuration.
